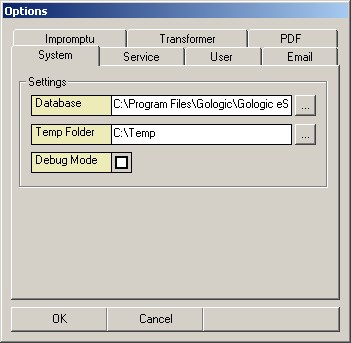

Options > System
Database: Set the default data source
Temp Folder: Set the temp folder used to create and copy temporary files to.
Debug Mode: Set the flag for logging debug information into log files.

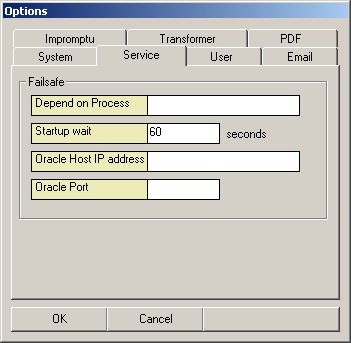

Options > Service
Depend on Process: Set dependency between eScheduler Service and a process. When the process terminates the eScheduler service is stopped.
Startup wait: Set the eScheduler Service wait time to become active after booting the computer
Oracle Host IP address: Set the eScheduler Service Oracle host ip address. This is used to check if oracle is available after a database or network failure. (see tnsnames.ora, e.g. 10.0.0.2)
Oracle Port: Set the eScheduler Service Oracle port. This is used to check if oracle is available after a database or network failure. (see tnsnames.ora, e.g. 1521)

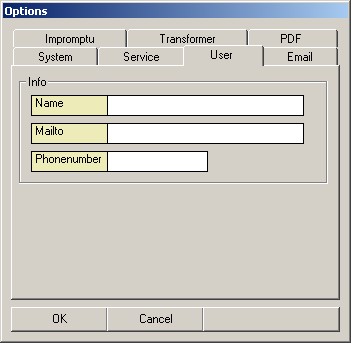

Options > User
Name: Set name displayed in the email messages that are sent by eScheduler
Mailto: Set email address used as reply address for email messages that are sent by eScheduler
Tel: Set contact telephone number

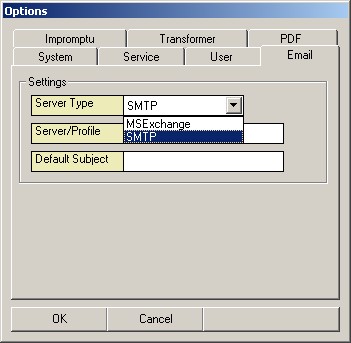

Options > Email
Server Type: Set the method to send email messages
Server/Profile: Set the Microsoft Exchange Profile (requires Collaboration Data Objects) or SMTP server used to send email messages
Default Subject: Set the subject displayed in the email messages

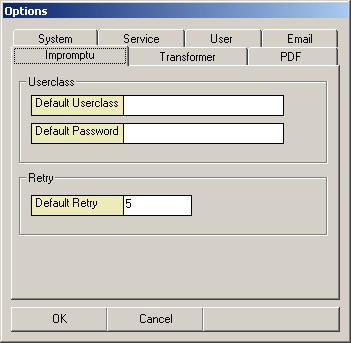

Options > Impromptu
Default Userclass: Set the Userclass to logon to Impromptu Catalogs
Default Password: Set the Userclass password to logon to Impromptu Catalogs
Default Retry: Set the default retry rate for tasks that returned an error

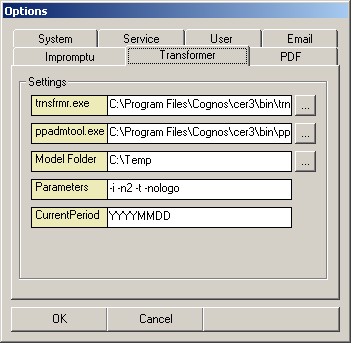

Options > Transformer
trnsfrmr.exe: Set the location of trnsfrmr.exe
ppadmtool.exe: Set the location of ppadmtool.exe to update Powerplay Web Cubes
Model Folder: Set the location where the Transformer model (.P??) files will be copied, before eScheduler builds the cube. It is important because by copying the model the original file will not be locked during the build process. Furthermore no categories will be added to the original model.The copy can later be used to overwrite the original model when the new categories need to be used for special categories and alternative drilldown paths.
Parameters: Set the Transformer command line parameters
CurrentPeriod: Set the period category format to set the current period. The current period will be set to date of cube build - 1 day. It is important to disable "Automatically set the current time period" in Transformer in order to allow eScheduler to set the current period.
Options > PDF
Printer: Set the PDF printer
Output Folder: Set the output folder used by the PDF printer
Install: Start the WIN2PDF setup wizard
Configure: Configure WIN2PDF to use it with eScheduler

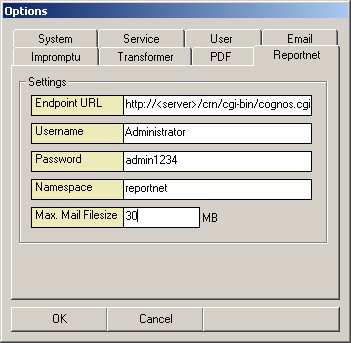

Options > Reportnet
Endpoint URL: Set the default url of the Reportnet gateway
Username: Set the username to access Reportnet
Password: Set the password to access Reportnet
Namespace: Set the Reportnet namespace
Max. Mail Filesize: Set the maximum filesize in megabytes of the Reportnet email attachment.
Files larger than the set value are not send but saved in the temporary folder.
